In this comprehensive guide, we will break down exactly what Azure Storage Mover is, dive deep into its architectural components, and walk through a step-by-step tutorial on how to configure and deploy it to streamline your hybrid cloud strategy.

Azure Storage Mover

What is Azure Storage Mover?

At its core, Azure Storage Mover is a relatively new, fully managed hybrid migration service that allows you to migrate on-premises files and folders to Azure Storage containers or file shares. Think of it as a cloud-native, highly scalable orchestration engine that replaces manual scripts (like robocopy or rsync) with a centralized, single-pane-of-glass management console.

The Problem It Solves

Historically, migrating large-scale file data required deploying complex third-party software or managing a fleet of local VMs running custom scripts. These methods lack centralized logging, struggle with modern security perimeters, and require manual scale-up efforts.

Azure Storage Mover changes this by separating the management plane (the Azure portal) from the data plane (a lightweight agent running in your local environment). This architecture ensures that your data transfers remain secure, optimized, and incredibly easy to monitor.

Key Benefits for Enterprise Infrastructure

• Centralized Orchestration: You can define, schedule, and monitor multiple migration jobs across different geographical sites directly from the Azure Portal.
• High Performance: It is optimized for high-throughput, multi-threaded data transfers, utilizing your available network bandwidth efficiently.
• Metadata Preservation: Crucial file attributes, permissions (ACLs), and timestamps are accurately maintained during the transition.
• Cost-Effective: By minimizing infrastructure overhead and offering a streamlined migration path, it reduces both operational friction and capital expenditure.

Azure Storage Mover vs. Alternative Azure Migration Tools

A question I frequently encounter is: “Why should I use Azure Storage Mover instead of Azure Data Box or AzCopy?” It all comes down to the nature of your migration project. Let’s look at how these tools compare across key parameters.

Understanding the Architectural Components

Before we jump into the configuration tutorial, it is critical to understand the primary resources you will interact with. Azure Storage Mover utilizes a specific hierarchical resource model.

Azure Storage Mover (Resource)
 └── Storage Mover Agent (On-Premises VM)
 └── Migration Project
      └── Job Definition
           └── Job Run (Execution Instance)

1. The Storage Mover Resource

This is the top-level Azure resource that acts as the container for your entire migration infrastructure. It holds your projects, definitions, and registered agents.

2. The Agent

The agent is a lightweight, managed virtual appliance running inside your on-premises data center (currently deployed as a VMware vSphere VM). It establishes a secure outbound connection to Azure, fetches job instructions, and handles the actual heavy lifting of reading from your source storage and writing to Azure.

3. Migration Projects

Projects are logical groupings used to organize your migration efforts. For example, you might create a project named Finance-Data-Migration or West-Coast-User-Shares to keep your activities structured.

4. Job Definitions

Within a project, a job definition specifies the exact source (e.g., an on-premises SMB share), the exact destination (e.g., an Azure Blob container), and the migration settings (such as the copy behavior).

5. Job Runs

A job run is the actual execution instance of a job definition. Every time you trigger a migration job, a new job run is generated, providing real-time telemetry, logs, and status metrics.

Prerequisites for Deployment

To follow along with this tutorial, you need to ensure your environment meets the necessary administrative and infrastructure prerequisites.

Azure Side Requirements

• An active Azure subscription.
• Owner or Contributor access to the subscription or target resource group.
• A target Azure Storage Account (Blob Storage or Azure Files) already provisioned.
• The following Azure RBAC roles assigned to your identity:
  • Storage Mover Administrator (to deploy and manage the service).
  • Storage Blob Data Contributor or Storage File Data Privileged Contributor (on the target storage account).

On-Premises Side Requirements

• A VMware vSphere environment (ESXi 7.0 or higher) to host the agent VM.
• Network access from the VM host to your local source file systems via SMB or NFS protocols.
• Outbound internet connectivity on port 443 (HTTPS) from the agent VM to Azure endpoints. (No inbound ports need to be opened).

Step-by-Step Tutorial: Setting Up Azure Storage Mover

I will guide you through the exact process of provisioning the service, registering your local agent, and executing your very first automated migration job run.

Step 1: Create the Azure Storage Mover Resource

First, we need to establish our management footprint within the cloud.

1. Log into the Azure Portal.

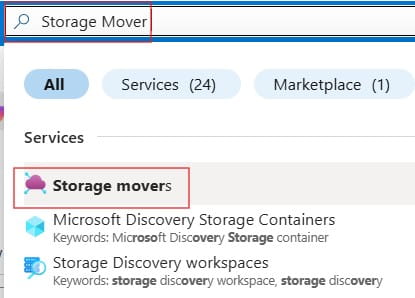

2. In the global search bar, type Storage Mover and select Storage Movers from the services list.

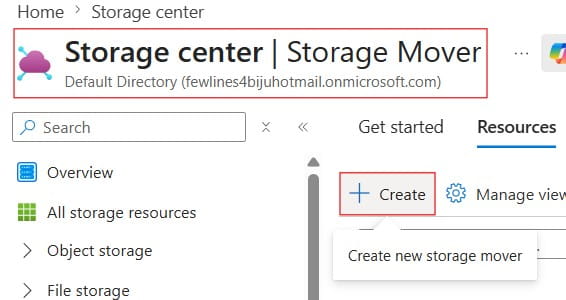

3. Click on the Create button.

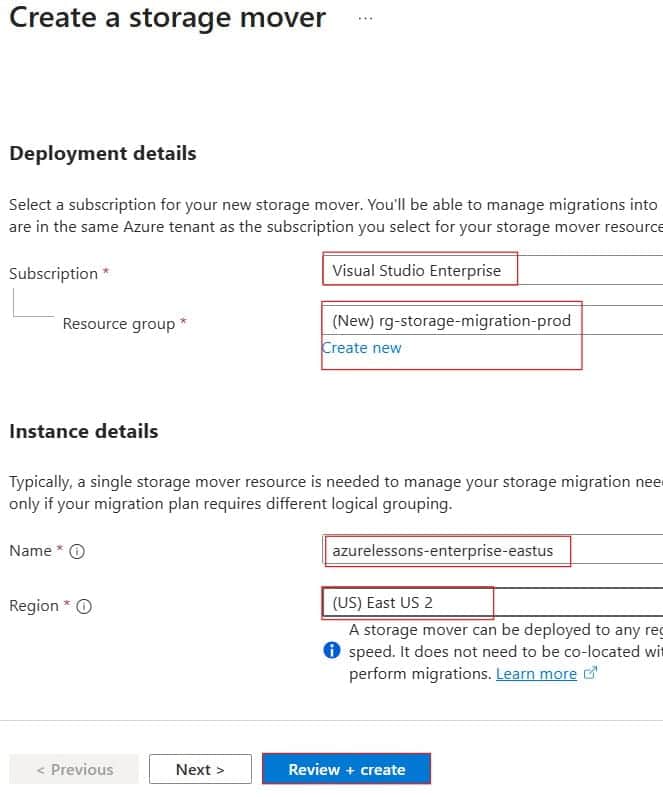

4. On the Basics tab, fill out the required information:
   • Subscription: Select your target subscription.
   • Resource Group: Create a new one or select an existing group (e.g., rg-storage-migration-prod).
   • Name: Provide a meaningful name (e.g., azurelessons-enterprise-eastus).
   • Region: Choose an Azure region closest to your on-premises data center to reduce management latency (e.g., East US 2).
5. Click Review + Create, and then click Create once validation passes. Check out the screenshots below for your reference.

Step 2: Download and Deploy the On-Premises Agent

Once the cloud resource is ready, we need to deploy the data plane component into your local virtual environment.

1. Navigate to your newly created Storage Mover resource in the Azure Portal.
2. Select Agents from the left-hand navigation menu, and click Download Agent. This will redirect you to the Microsoft Download Center to fetch the Open Virtual Appliance (.ova) file.
3. Open your VMware vSphere Client.
4. Deploy the .ova template into your local cluster, ensuring it is allocated adequate compute resources (minimum 4 vCPUs and 8 GB of RAM are recommended for standard production workloads).
5. Attach the VM to a virtual network segment that has direct routing to both your on-premises storage arrays and the outbound internet.
6. Power on the virtual machine.

Step 3: Register the Agent with Your Azure Subscription

The local agent must now be linked securely to your specific Azure Storage Mover cloud resource.

1. Access the console of the newly deployed agent VM via vSphere or an SSH client.
2. Log in using the default administrative credentials provided in the official documentation.
3. Initialize the configuration wizard by executing the registration command utility built into the image shell.
4. The script will prompt you to authenticate against Azure using a device code mechanism. Open a browser on your workstation, navigate to https://microsoft.com/devicelogin, and enter the unique code displayed on the VM console.
5. Provide the target parameters when prompted:
   • Tenant ID
   • Subscription ID
   • Resource Group Name
   • Storage Mover Resource Name
6. Once the script successfully completes its cryptographic handshake, return to the Azure Portal. Refresh the Agents blade; you will see your local agent listed with a status of Online.

Step 4: Configure Endpoints (Source & Destination)

Before defining a job, we must tell Azure exactly where the data lives today and where it needs to go tomorrow.

Define the Source Endpoint:

1. Within your Storage Mover resource portal menu, navigate to Endpoints.
2. Click Add Endpoint and select Source Endpoint.
3. Set the endpoint type to match your environment (e.g., SMB share or NFS share).
4. Provide the fully qualified domain name (FQDN) or IP address of your local file server along with the exact share path (e.g., \\fileserver.local\corp-share).
5. Enter the necessary service account credentials that grant the agent read access to this directory structure.

Define the Destination Endpoint:

1. Click Add Endpoint again, and select Destination Endpoint.
2. Select Azure Storage container or Azure file share depending on your destination architecture.
3. Use the drop-down menus to select your target Storage Account and the specific Container/Share name.

Step 5: Create a Migration Project and Job Definition

With our endpoints firmly established, we can now assemble our structural migration pipeline.

1. Navigate to the Migration Projects section under your Storage Mover resource.
2. Click Add Project, name it (e.g., Data-Center-Evacuation), and click Create.
3. Select your new project from the list, and click Add Job Definition.
4. Configure the job parameters:
   • Job Definition Name: Give it a distinct identity (e.g., job-legacy-share-migration).
   • Source Endpoint: Select the source share configured in Step 4.
   • Destination Endpoint: Select the target cloud container configured in Step 4.
   • Copy Behavior: Select either Merge (copies files missing at destination without deleting target files) or Mirror (creates an exact replica, potentially overwriting target discrepancies).
5. Save the definition.

Step 6: Execute and Monitor Your First Job Run

Your migration pipeline is now fully formed. All that remains is to initiate the data transfer.

1. Click on the job definition you constructed in the previous step.
2. Click the Start New Run button on the top action bar.
3. Select the registered Agent you want to assign to this workload execution.
4. Click Start.

The status will progress through several operational phases:

• Queued: The cloud control plane is assigning the workload instructions.
• Running: The on-premises agent isactively discovering files and uploading bytes.
• Succeeded: The data copy is complete, and metadata integrity checks have passed.

You can monitor performance in real-time right from this dashboard, looking at items like bandwidth consumption, files scanned, and bytes successfully transferred.

Best Practices for Enterprise Migrations

Executing an enterprise-level data migration requires careful planning. Below are key architectural practices:

Network and Bandwidth Optimization

• Local Proximity: Ensure your agent VM is hosted on a network switch with low-latency access to the source NAS or file server.
• Traffic Shaping: If you share an internet pipe (e.g., an ExpressRoute or site-to-site VPN) with production application workloads, schedule your intensive job runs during off-peak hours or implement QoS bandwidth throttling to prevent network saturation.

Security and Identity Governance

• Principle of Least Privilege: Ensure the service accounts used for your source endpoints are restricted to read-only access unless your workflow demands modification of local source files.
• Managed Identities: Leverage Azure Managed Identities to handle authentication between the Storage Mover resource and your destination Storage Accounts, completely eliminating the need to rotate or store long-lived connection strings.

Effective Agent Management

• Scale-Out Strategy: While a single agent can process multiple jobs, consider deploying multiple agent VMs if you need to migrate distinct, massive file storage zones concurrently. This divides the CPU/RAM burden of scanning large file systems.

Conclusion

Azure Storage Mover eliminates the fragility of traditional, script-heavy file migrations. By unifying your hybrid migration efforts into a single cloud-managed framework, it allows infrastructure teams to focus on data strategy rather than troubleshooting failed transfer processes.
